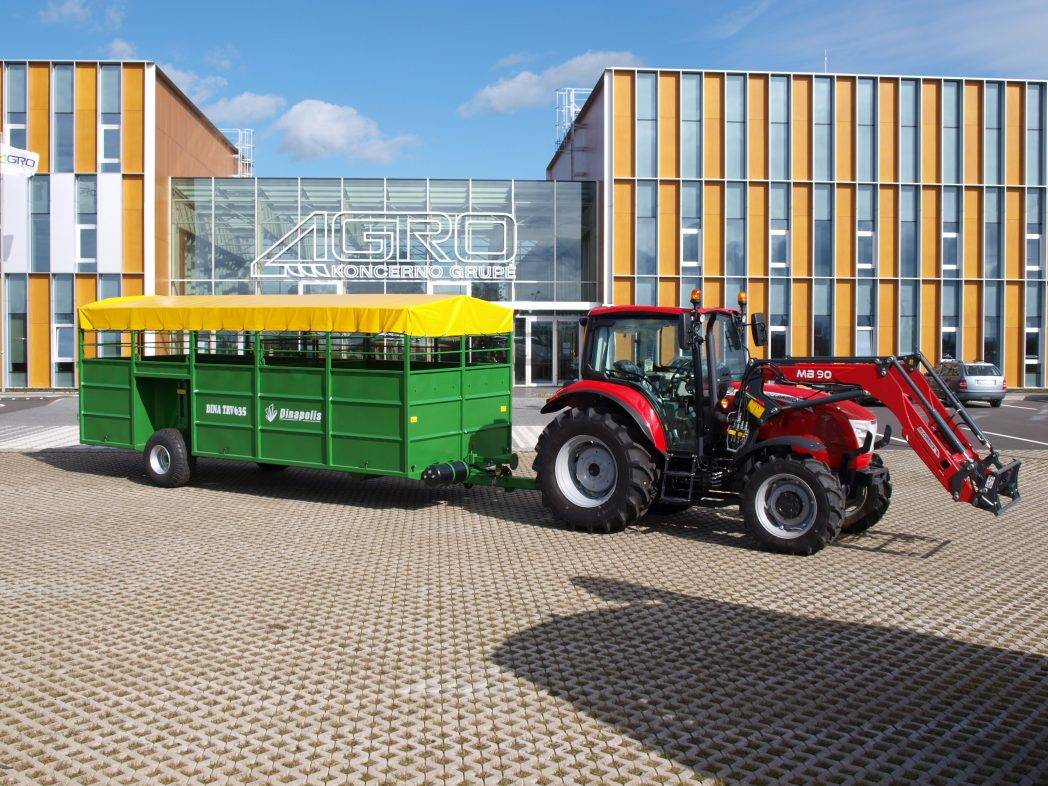

Dinapolis livestock trailer TRV 510

- Total length 6600
- Length of loading box 5100 mm
- Width: 2350mm
- Height: 2160mm
- Tires: 400/60-15.5
- Tire pressure: 3.60 MPa
- Load capacity 5 t
- Maximum authorized mass, 5700 kg
- Own weight, 2100 kg
- Double-acting cylinder
- Handbrake
- Hydraulic lifting system
- Support foot
- Plans

Extra charge:
- Hydraulic brake with ALB
- Pneumatic brake with ALB
- Combined brake
- Rear ramp
- Door on the right
- Door on the left
- 2 and more compartments
- Rear ramp grid
- Anti-slip bottom
- 4 cm drainage hole in the bottom
- Top suspension
- hydraulic support foot
- hydraulic support foot (dual line)
- rigid towing eye 40 mm
- rigid towing eye 40 mm with flange plate
- rotating towing eye (50 mm) with flange plate
- ball coupling K80 with flange plate
- steering axle

EXPORT: ONLY THE NET AMOUNT NEED TO PAID (with valid EU- VAT number)/ TRANSPORTATION WORLDWIDE POSSIBLE at good conditions. Offer valid while stocks last.
