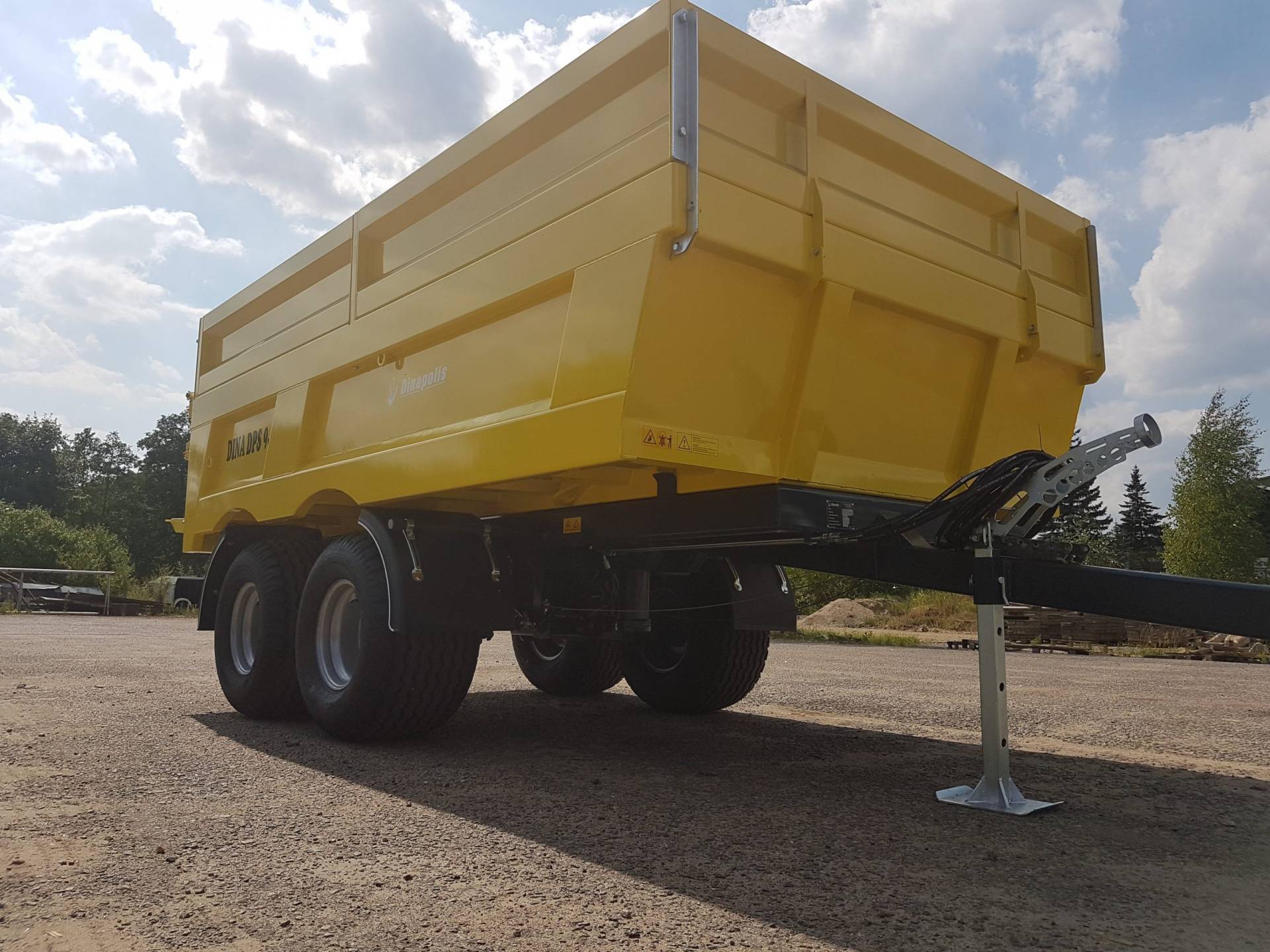

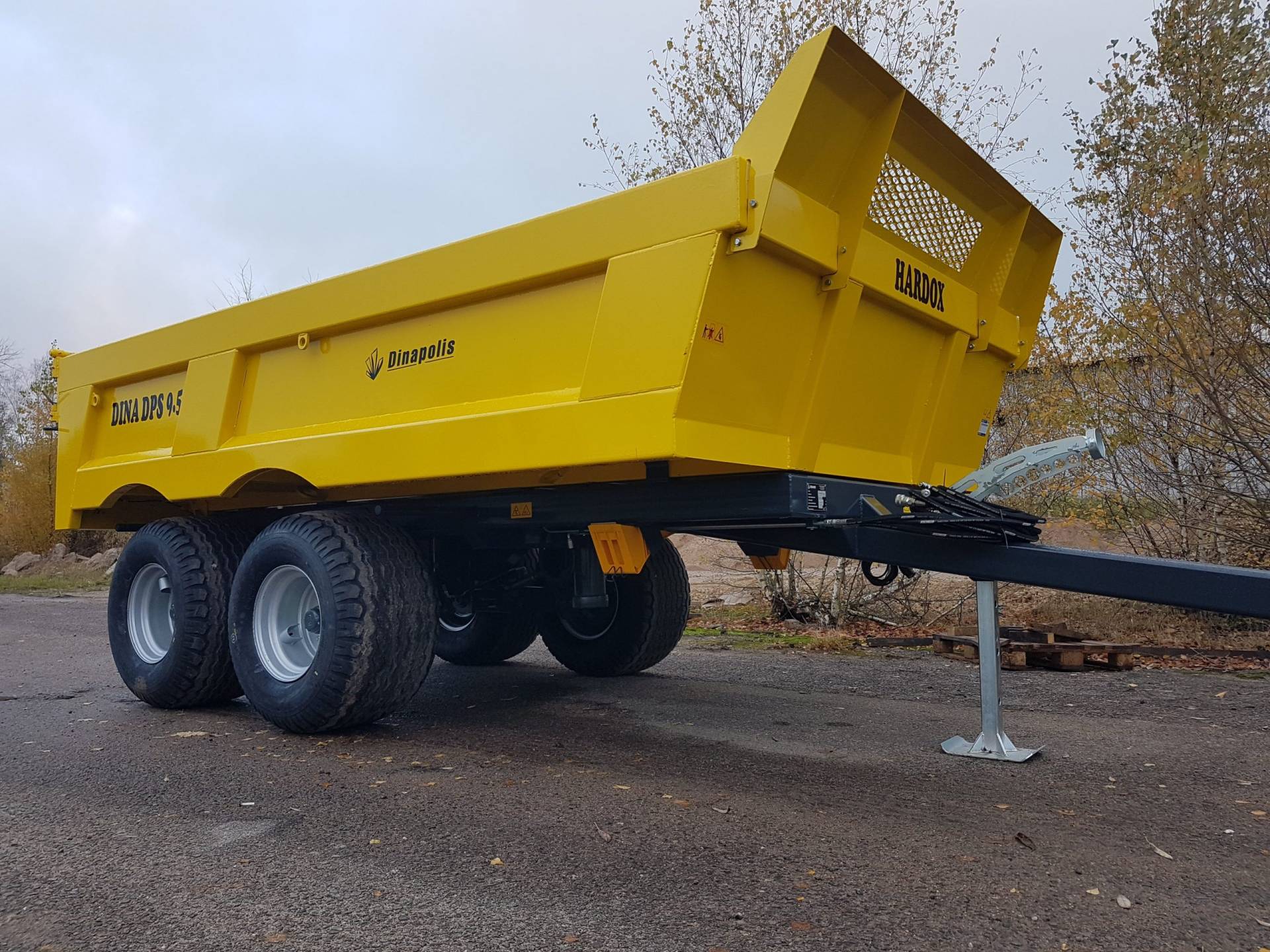

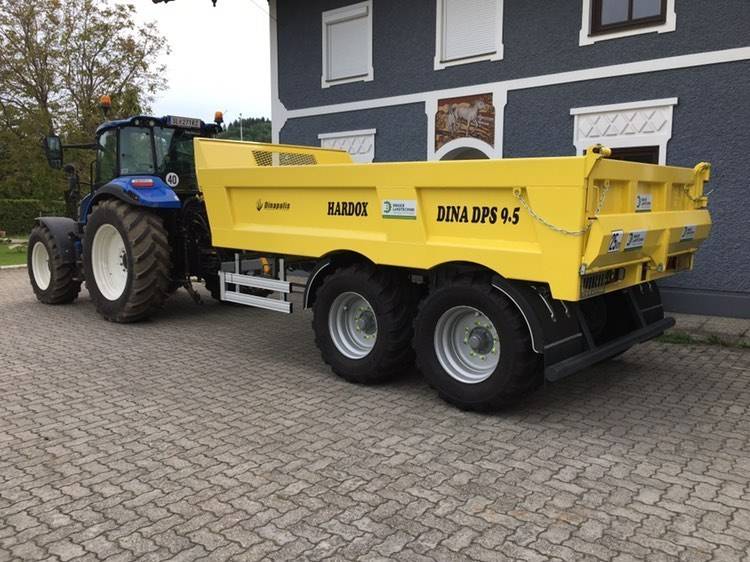

Dinapolis Heavy Duty dump truck DPS 9.5 t

External dimensions: L/W: 5800/2550 mm
Platform dimensions: L/W/H: 4100/2400/700 mm

- Steel S355
- Bottom thickness: 8 mm; Wall thickness: 6 mm
- Volume: 37 m3
- Load capacity: 9.5 t
- Own weight: 3200 kg
- Tilting angle 55 °
- Hydraulic ballast flap with pendulum board at the top
- Rigid central drawbar
- Flanged towing eye
- Rigid bogie chassis
- Axis Q100
- Tires 550/45-22.5
- Flanged towing eye

Options at extra cost:
- Suspension Spring-Boogie or suspended tandem
- Other tires upon request
- Extensions 50 cm
- Hardox body, thickness 4/6 mm;
- Automatic rear gate
- Sideboards to open
- Support leg mechanical or hydraulic
- Braking system hydraulic or pneumatic
- Top drawbar
- hydraulic support leg
- hydraulic support leg (dual line)
- rigid towing eye 40 mm
- rigid towing eye 40 mm with flange plate
- rotating towing eye (50 mm) with flange plate
- Ball coupling K80 with flange plate
- steering axle
