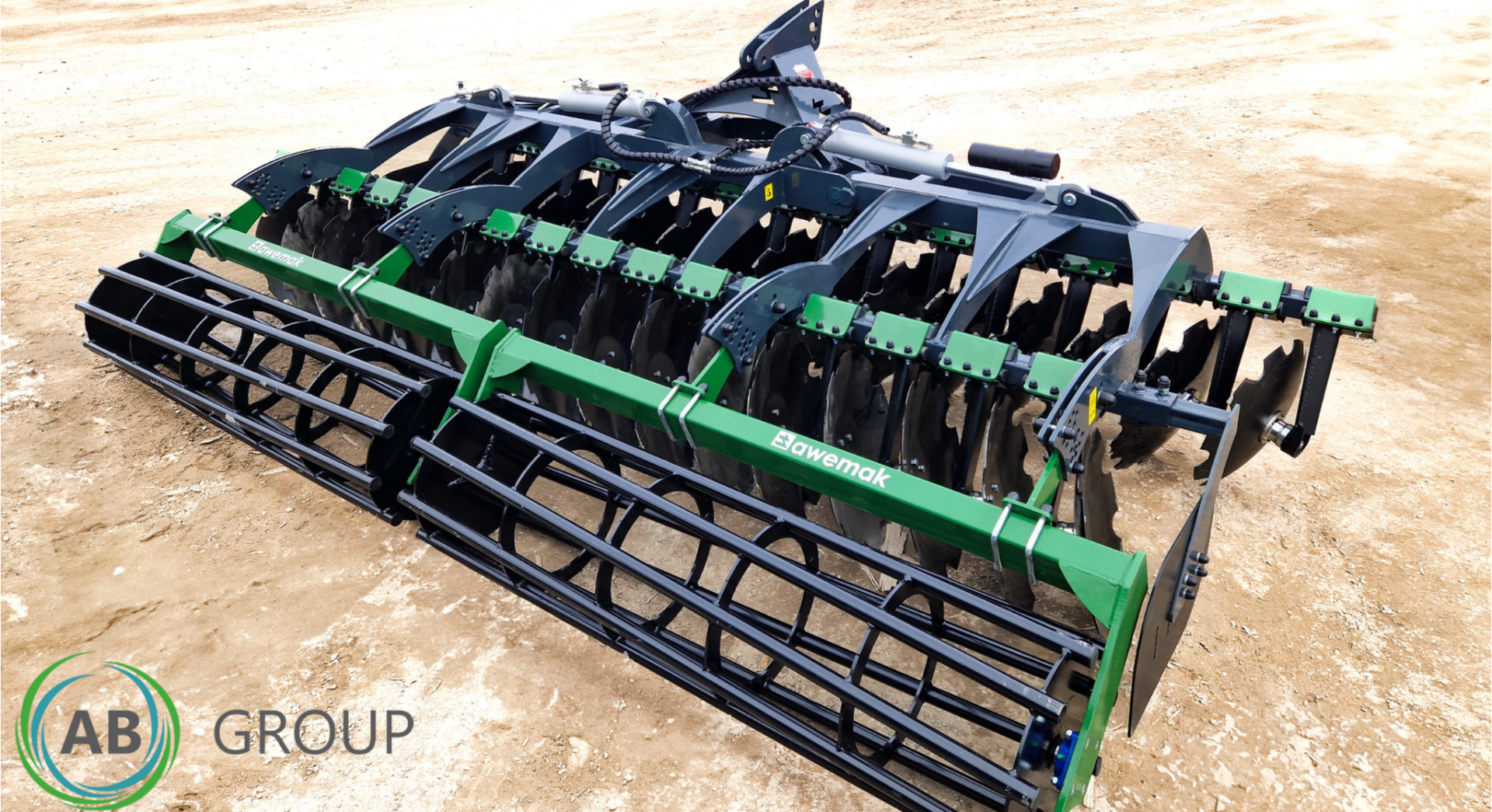

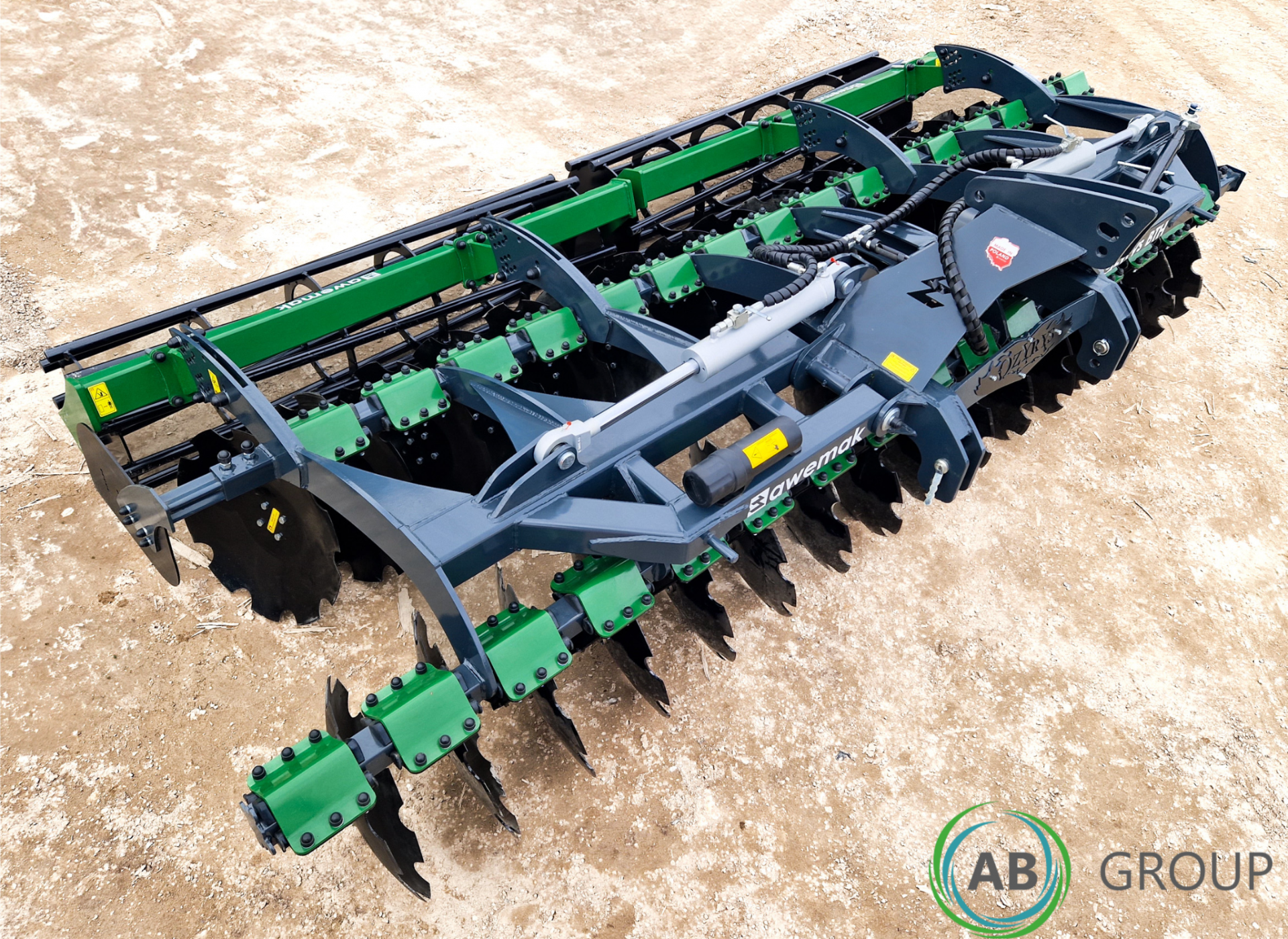

Awemak disc harrow BTH 4.5m hydraulically foldable

Technical data:

• Working width 4.5m
• Power requirement 130-150 hp
• Weight 2000kg
• Number of discs / hubs 36 pieces
• Spacing between rows of discs 85cm
• Disc diameter [mm] Ø 510mm
• Two rows of discs Ø 510mm hardened boron steel
• Spring or rubber protection of discs
• Tubular shaft Ø 500mm
• Adjustable working height of outermost discs
• Side screens with adjustable working height
• Hydraulic cylinder lock

Optional equipment:

• OFAS / AMA discs
• 560x6mm OFAS / AMA discs
• Ø610 discs (with maintenance-free hub only
• Spring protection (Ø510mm disc only)
• Reinforced disc legs
• Maintenance-free hub AVE
• NSK/FK maintenance-free hub
• Impact bar
• Scraper row
• Two additional cylinders for folding the frame
• LED lighting
• LED lighting + wheel arches (semi-mounted version)
• Active side screens
• Hydraulic adjustment of working depth
• Front 2×2 support wheels (R15/200 wheels)
• Front support wheels 2×2 (wheels 10/18-12)
• Transport cart + drawbar (400/60-15′ wheels)
• Transport cart + drawbar (wheels 500/50-17′)
• Hydraulic drawbar
• Ø40 eyebolt (only with hydraulic drawbar)
• Ø50 eyebolt (only with hydraulic drawbar)
• Hitch type K80 (only with hydraulic drawbar)
• Air brakes
• Hydraulic brakes
• Trimming rollers

Other working widths available: 4, 5, 6m
